Name: Vertical outdoor heavy Strand Woven Bamboo wall panels
Brand: Ningguo Kuntai Bamboo and Wood Co.,Ltd.

Vertical Outdoor Heavy Strand Woven Bamboo Wall Panels

Strand Woven Bamboo Cladding

Density >1.1 g/cm³ · Brinell hardness > oak · Carbonization treated

ENGINEERING PROFILE

Manufactured through crushing raw bamboo poles into long fibers, saturated with phenolic resin and compressed under extreme pressure. This mechanical reorganization results in material density exceeding 1.1 g/cm³, providing structural alternative to tropical hardwoods. Vertical orientation of grain and installation system facilitates efficient water runoff and creates distinct linear aesthetic suitable for modern sustainable construction projects.

1.1-1.2 g/cm³ Density

8-12 % Moisture Content

B1 Class EN 13501-1

1860x140x18 mm Standard Dims

Dimensional Stability

High-pressure strand weaving process minimizes internal hygroscopic expansion and contraction typical of natural timber, reducing risk of warping or cupping in outdoor environments.

Biological Resistance

Through thermal treatment (carbonization) process, nutrient sugars within bamboo are removed, rendering panels resistant to fungal decay and termite infestation without toxic pesticides.

Carbon Sequestration

Fast-growing grass reaching maturity in 5 years, maintaining lower carbon footprint compared to traditional masonry or slow-growing timber cladding.

Surface Hardness

Brinell hardness rating significantly higher than oak or teak, resisting mechanical impact, scratches, and abrasions in high-traffic public areas.

Technical Characteristics

Density1.1 - 1.2 g/cm³

Moisture Content8% - 12%

Flame RetardancyClass B1 (EN 13501-1)

Standard Dimensions1860mm x 140mm x 18mm (Customizable)

Installation SystemHidden Clip System / Tongue and Groove

Application Scenarios

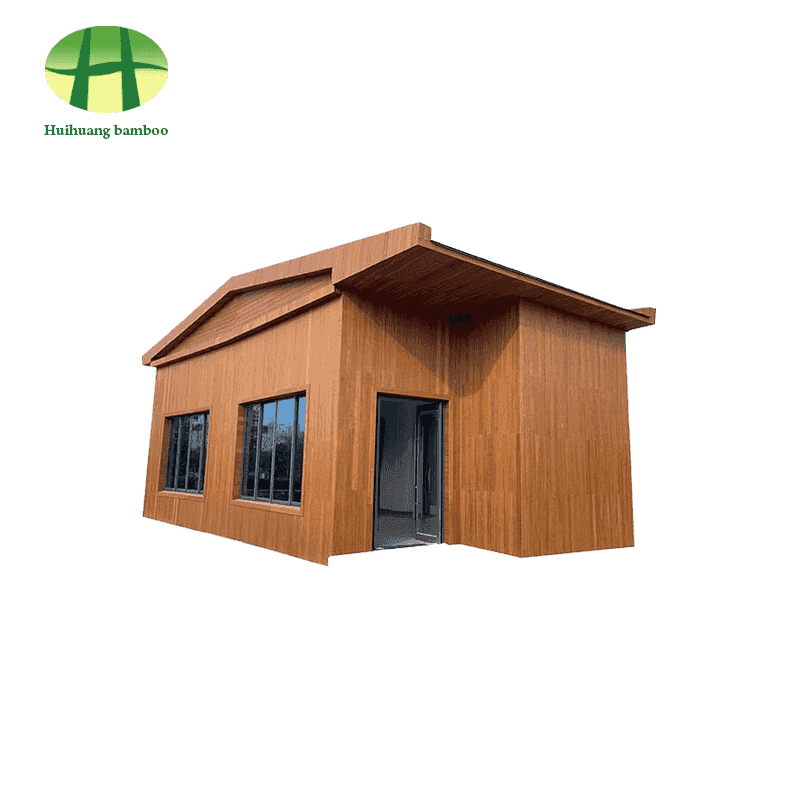

Commercial Facades · Corporate offices · Retail centers

Residential Landscaping · Garden patios · Balconies · Poolside enclosures

Public Infrastructure · Park pavilions · Museum exteriors · Urban walkways

Hospitality Projects · Resort villas · Outdoor restaurant terraces

Storage Conditions

Flat Stacking: Panels stored horizontally on flat, dry surface with sufficient support beams to prevent sagging.

Ventilation: Keep material in shaded, well-ventilated area, protected from direct sunlight and precipitation prior to installation.

Acclimatization: Allow panels to sit at installation site for at least 48 to 72 hours to adjust to local equilibrium moisture content.

Installation and Maintenance Tips

Airflow Gap: Maintain minimum ventilation gap of 20mm between bamboo panels and structural wall to prevent moisture buildup.

End Sealing: Use specialized wax or end-sealer on any cross-cut sections to minimize moisture absorption through end grain.

Periodic Oiling: Apply outdoor water-based oil finish annually or as needed based on local weather exposure to maintain original color against UV-induced graying.

Ningguo Kuntai Bamboo and Wood Co., Ltd. is located in Ningguo, Xuancheng City, Anhui Province, known as the "Bamboo Village," where large quantities of bamboo plants grow. "Huihuang Bamboo," established in the year 2002, has now set up a large manufacturing site in Anhui, a modern factory named KUNTAI, which covers an area of 30,000 square meters. We are China Vertical outdoor heavy Strand Woven Bamboo wall panels Manufacturers and Custom Vertical outdoor heavy Strand Woven Bamboo wall panels Factory. KUNTAI is a professional manufacturer of outdoor strandwoven bamboo decking, bamboo flooring, bamboo wall-cladding and siding, bamboo panels, plywood, bamboo boards, bamboo timbers and beams, bamboo ceiling and roof, as well as bamboo garden furniture. We have obtained the certificates of FSC, CE, SGS, and ISO9001, ISO14001. We are the holder of a US patent for outdoor bamboo decking (No.. US11148318) and are authorized by the US patent as a manufacturer and exporter in China. Clients and customers are welcome to visit our factory.
